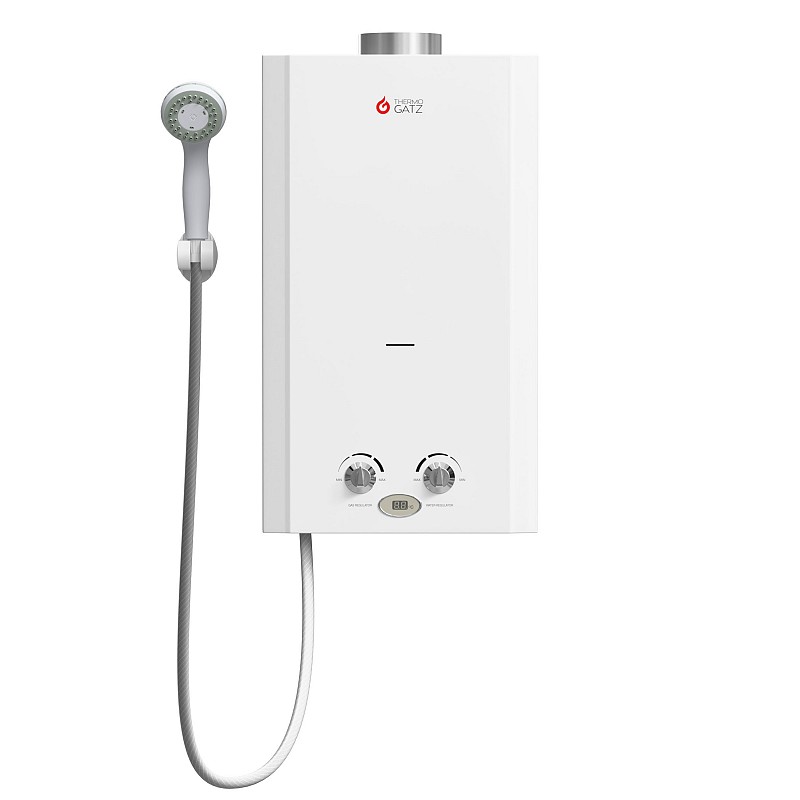

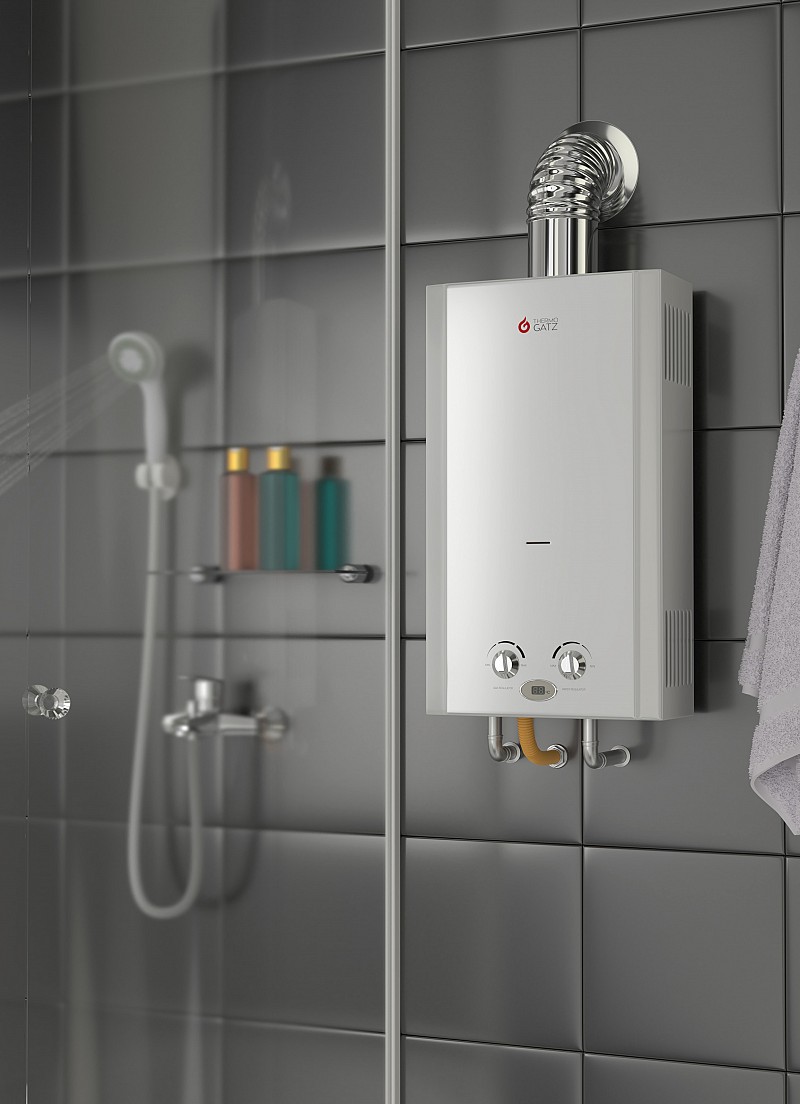

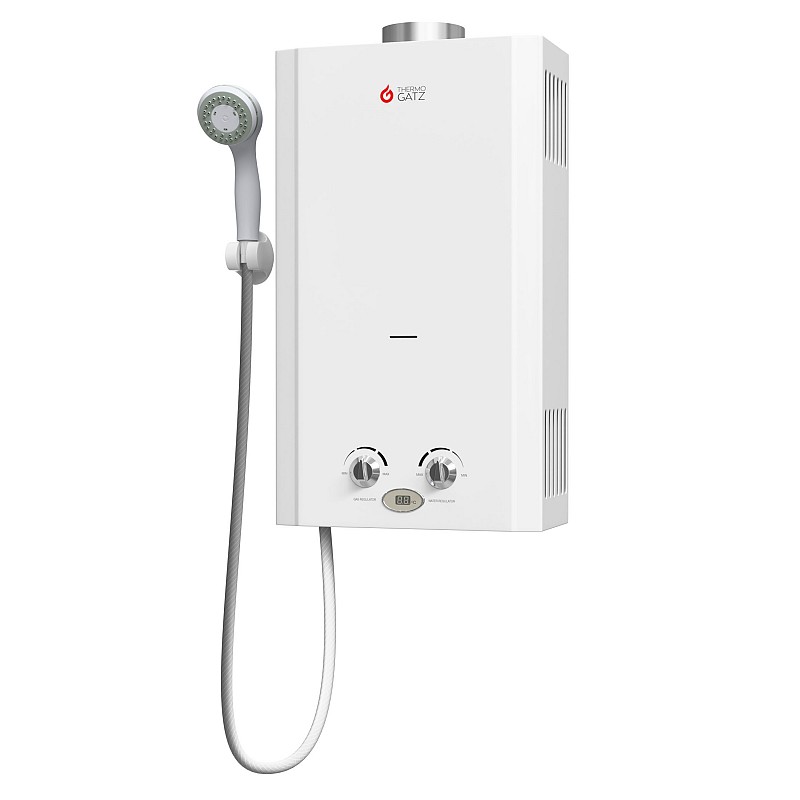

Instantaneous Gas Water Heater. Thanks to its compact size, its weight is reduced, and space is saved. Installation is regarded easy, use and maintenance are characterized by simplicity. Automatic ignition is activated when the tap opens via an electronic mechanism. Ability to adjust gas power output, without a continuous pilot flame, for economic usage. Option to set standard quantity for the water supply, in order to ensure a steady flow in case of fluctuations in the provider’s supply flow. Simple and easy-to-read LCD screen. Electric installation is not required. Multi-spray shower head. Pressure switch. Safety valve protects from high pressure.
Rated Heat Output 24Kw
Effective/ Minimum thermal output 21Kw / 9,8Kw
Energy Efficiency 72,2%
Hot water production 12L/min
Electrical Power Outage 3v(2 Batteries D 1,5v)*
Max. Water Pressure 7,5 bar
Min. Water Pressure 0,5 bar
Liquid Gas LPG G30 / G31 - (28-30)/37mbar
Natural Gas NG G20 – 20mbar
Energy Class A
Noise Level 55dB

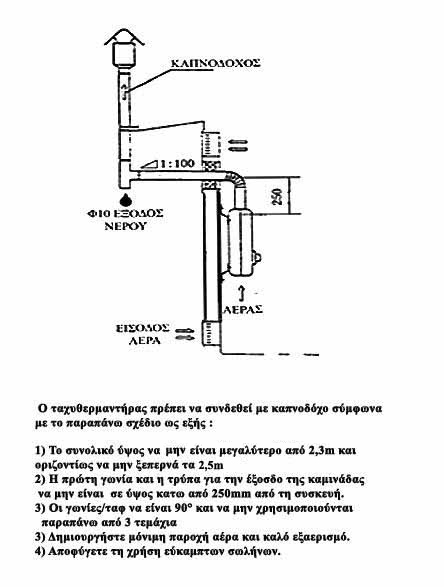

Exhaust Pipe Φ120mm
Open Combustion Chamber. Indoor placement.
Including:multi-spray shower head and first exhaust pipe (25cm)
*Batteries not included
Net Length: | 35 cm |
Net Height: | 61 cm |
Net Depth: | 18,8 cm |
Net Weight: | 9,9 kg |
Gross Length: | 72,5 cm |
Gross Height: | 24,5 cm |
Gross Depth: | 42 cm |
Gross Weight: | 11,5 kg |
